Product features
● Large filtration area and high flow
●?Low pressure difference and long life
●?Wide chemical compatibility?
●?Clean workshop production ensure the filter practical safety
●?Sterilization level filter: 0.1μm~ 5μm
Typical Application

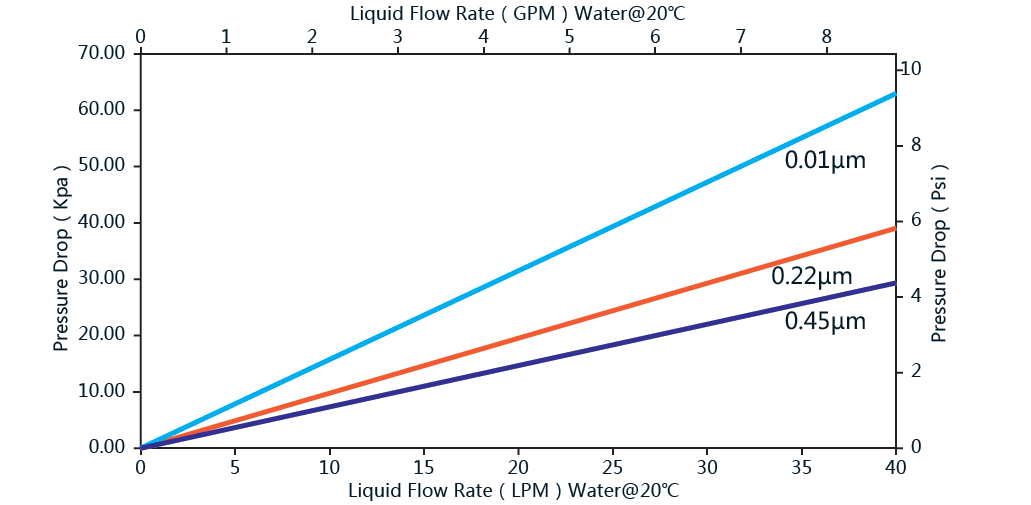

●?Compressed airFlow Rate
|
Body?Diameter |
69mm |
|
Length |
5’’,?10’’,?20’’,?30’’,?40’’ |
|
Filter?Media |
PTFE |
|
Media?Support |
PP |
|
Structural?Components |
PP |
|
Sealing?Ring |
Silicone（EPDM,?Teflon?and?Viton?are?available） |
|
Filtration?Area |
0.65?m2/10’’ |
|
Maximum?Operating?Temperature |
80°C |
|
Maximum?Operating?Differential?Pressure |
Forward?4.0?Bar?@?20℃ |
|
Brevundimonas?diminuta?0.2μm |
LRV≥7?/cm2 |
| Part No. | Pore Size | Length | Connection | Sealing Ring | Inner Core | |
|---|---|---|---|---|---|---|
| CFPPT | 0010=0.1μm | 5 = 5’’ | G=226/Locking tabs/Fin | E=EPDM | P=PP | |
| 0020=0.2μm | 10=10’’ | H=226/locking tabs/Flat | S=Silicone | S=stainless steel | ||
| 0045=0.45μm | 20=20’’ | I=226/plug / Flat | V=Viton | |||
| 0060=0.6μm | 30=30’’ | J=222/locking tabs / Fin | T=Teflon | |||
| 0100=1μm | 40=40’’ | K=222/plug / Fin | ||||
| 0300=3μm | L=222/plug / Flat | |||||
| 0500=5μm | M=DOE |
