Product features
Three-layer deep filtration structure provides high pollution capacity and long service life
Direct hot melt entanglement of raw materials without any additives
Pure PP, good chemical compatibility
FDA certifies raw materials to ensure safe use
Typical Application
R.O.Pre-filtration
Food and Beverage
Industry Water, Plating Solution
Chemical, Organic Solvent Filtration
Microelectronics
Pharmaceutics

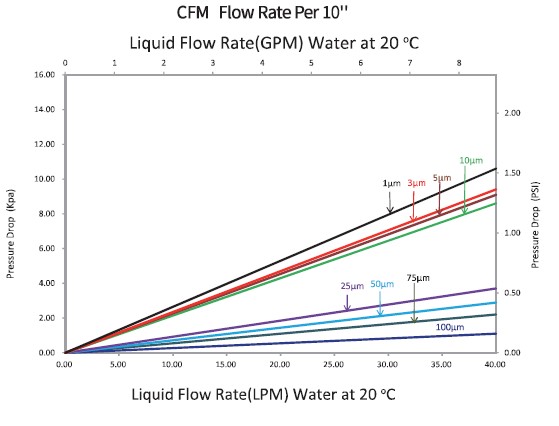

Flow Rate
|
Body?Diameter |
63mm?,?115mm |
|
Internal?Diameter |
28mm |
|
Length |
9.75",?9.87",?10",?20",?30",?40" |
|
Filter?Media |
PP |
|
Media?Support |
PP |
|
Structural?Components |
PP |
|
Sealing?Ring |
Silicone（EPDM,?Teflon?and?Viton?are?available） |
|
Maximum?Operating?Temperature |
65°C |
|
Maximum?Operating?Differential?Pressure |
Forward?2.0?Bar?@?20℃ |
| Part No. | Pore Size | Length | Connection | Sealing Ring | Inner Core | |
|---|---|---|---|---|---|---|
| CFM | 0010=0.1μm | 10=10" | G=226/Locking tabs/Fin | E=EPDM | P=PP | |
| 0020=0.2μm | 20=20“ | H=226/locking tabs/Flat | S=Silicone | S=stainless steel | ||
| 0045=0.45μm | 30=30" | I=226/plug / Flat | V=Viton | |||
| 0060=0.6μm | 40=40" | J=222/locking tabs / Fin | T=Teflon | |||
| 0100=1μm | K=222/plug / Fin | |||||
| 0300=3μm | L=222/plug / Flat | |||||
| 0500=5μm | M=DOE |
