Product features
● Large filtration area and high flowTypical Application
●?Cell Culture Media

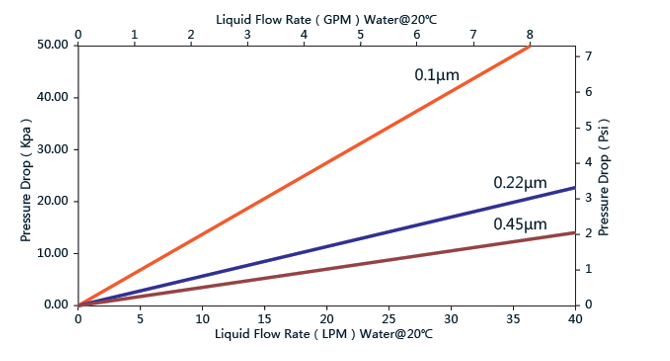

Flow Rate
|
Body?Diameter |
69mm |
|
Length |
5’’,?10’’,?20’’,?30’’,?40’’ |
|
Filter?Media |
PES |
|
Media?Support |
PP |
|
Structural?Components |
PP |
|
Sealing?Ring |
Silicone（EPDM,?Teflon?and?Viton?are?available） |
|
Filtration?Area |
0.65?m2/10’’ |
|
Maximum?Operating?Temperature |
80°C |
|
Maximum?Operating?Differential?Pressure |
Forward?4.0?Bar?@?20℃ |
|
Brevundimonas?diminuta?0.2μm |
LRV≥7?/cm2 |
| Part No. | Pore Size | Length | Connection | Sealing Ring | Inner Core | |
|---|---|---|---|---|---|---|
| CFPPS | 0010=0.1μm | 5 = 5’’ | G=226/Locking tabs/Fin | E=EPDM | P=PP | |
| 0020=0.2μm | 10=10’’ | H=226/locking tabs/Flat | H=226/locking tabs/Flat | |||
| 0045=0.45μm | 20=20’’ | I=226/plug / Flat | V=Viton | |||
| 0060=0.6μm | 30=30’’ | J=222/locking tabs / Fin | T=Teflon | |||
| 40=40’’ | K=222/plug / Fin | |||||
| L=222/plug / Flat | ||||||
| M=DOE |
