Features
? Naturally hydrophilic, no need for pre-wetting

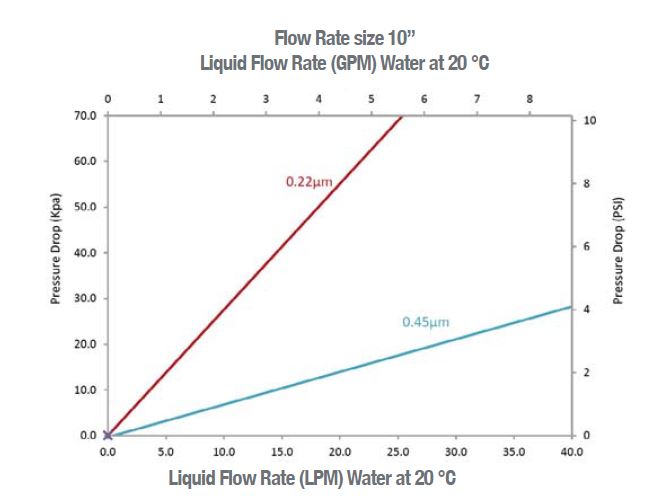

? High flow rate, low DP and long service life
? Excellent integrity provides good particle removal and sterilization efficiency
? Non-contact welding adopted, no adhesives, low extractables
? Excellent chemical compactivity
? Tolerance for in-line steam sterilization
? Gross integrity
Applications
? Large volume parenterals (LVP) injections and antibiotic filtration
? Physiological saline solution and other solvents filtration of microorganism removal
? Pure Water and water-based filtration of microorganism removal
Dimension
?Out Diameter 2,72” (69 mm)
?Length 5” (125 mm)
?10” (254 mm)
?20” (500 mm)
?30” (750 mm)
?40” (1000 mm)
Quality
? Filter Cartridges are manufactured in a clean room environment
? Manufactured according to ISO9001:2015 certified Quality Management System 33
Material of Constructions
?Filter medium Nylon N66
?Support/Drainage PET
?Cage/Core Polypropylene
?Endcap Polypropylene and Insert
Performance
? Max Operating Temperature 80 °C
? Max Operating DP Forward 4.0 bar @ 25 °C
Forward 2.4 bar @ 80 °C
? SIP 125 °C , 30min
